FPGA design for Software Engineers, part 4 - Multiplexed Seven Segment Displays

Jeff DeWall 11 min read April 23, 2023 #FPGA #Verilog

This time we'll continue from the last design article and add in the ability to drive multiple seven segment displays.

Article Series

  1. Verilog and State Machines
  2. Simulation and Build Tools
  3. Seven Segment Displays
  4. Docker Builds
  5. Build System Updates, ECP5 Support
  6. Time-Multiplexed Seven Segment Displays

Driving multiple displays

So we can drive a single seven segment display with only 3 pins of our FPGA using a shift register, but what if we want to have two or more displays? Do we need 3 pins for each? It turns out that since we can chain shift registers together, we can connect up multiple segments using just our same 3 pins.

In our first example, we'll daisy chain the segments together, so that each seven segment display is driven by its own shift register:

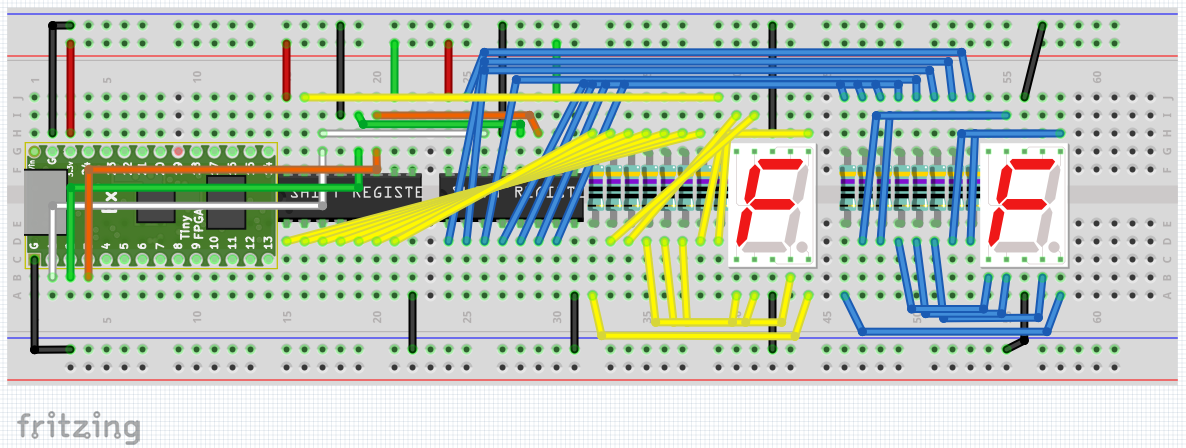

Daisy Chained Seven Segment Display Breadboard Layout

By chaining each register's shift out bit into the next register's data in bit, we effectively create a longer shift register.

Looking in the 04_seven_seg_shift_reg_multi example, you can can see how this looks. The code is mostly the same as our 03_seven_seg_shift_reg example, except that we change some constants and add an extra hex to seven segment decoder module instance for the extra display:

// look in pins.pcf for all the pin names on the TinyFPGA BX board
module top (
    input CLK       // 16MHz clock
    , output LED    // User/boot LED next to power LED
    , output USBPU  // USB pull-up resistor
    , output PIN_1  // shift register Data signal
    , output PIN_2  // shift register Data clock
    , output PIN_3  // shift register latch to outputs.
`ifdef SIMULATION
    //, output [3:0] o_num
    , output [15:0] o_seg_out // Debug output for simulator to veify shifted data is correct.
`endif
);
    // drive USB pull-up resistor to '0' to disable USB
    assign USBPU = 0;

    reg [31:0] counter;

`ifdef SIMULATION
    localparam START_SEG_1_BIT = 10;
    localparam LED_BLINK_BIT = 10;
    localparam CLOCK_BIT = 0;
`else
    localparam START_SEG_1_BIT = 22;
    localparam LED_BLINK_BIT = 22;
    localparam CLOCK_BIT = 12;
`endif

    localparam TOP_SEG_1_BIT = START_SEG_1_BIT + 3;
    localparam START_SEG_2_BIT = TOP_SEG_1_BIT + 1;
    localparam TOP_SEG_2_BIT = START_SEG_2_BIT + 3;

    wire [15:0] seg_out;
    wire sh_ds, sh_clk, sh_latch;

    hex_to_7seg segDisplay(
            .i_val(counter[TOP_SEG_1_BIT:START_SEG_1_BIT]),
            .o_seg_vals(seg_out[15:8])
        );
    hex_to_7seg segDisplay2(
            .i_val(counter[TOP_SEG_2_BIT:START_SEG_2_BIT]),
            .o_seg_vals(seg_out[7:0])
        );

    reg shift_reg_clock = 0;
    reg shift_toggle = 0;

    // Create a 16 bit (2^4) shift register.
    shift_reg_output #(
        .DATA_WIDTH(4)
        ) shiftReg (
            .i_clk(shift_reg_clock),
            .i_reset(1'b0),
            .i_value(seg_out),
            .i_enable_toggle(shift_toggle),

            .o_data_val(sh_ds),
            .o_data_clock(sh_clk),
            .o_latch_shifted_value(sh_latch)
        );

    // increment the counter every clock
    always @(posedge CLK) begin
        counter <= counter + 1;
        shift_reg_clock <= counter[CLOCK_BIT];
        shift_toggle <= counter[START_SEG_1_BIT];
    end

    // light up the LED according to the pattern
    assign LED = counter[LED_BLINK_BIT];

    assign PIN_1 = sh_ds;
    assign PIN_2 = sh_clk;
    assign PIN_3 = sh_latch;

    `ifdef SIMULATION
        assign o_seg_out = seg_out;
        //assign o_num = counter[TOP_SEG_2_BIT:START_SEG_1_BIT];
    `endif

endmodule

The main changes to note:

In our simulation code, everything is mostly the same apart from having an extra segment to display and some positioning code for the virtual seven segment display.

If you build and run the simulation you should see two segments counting up:

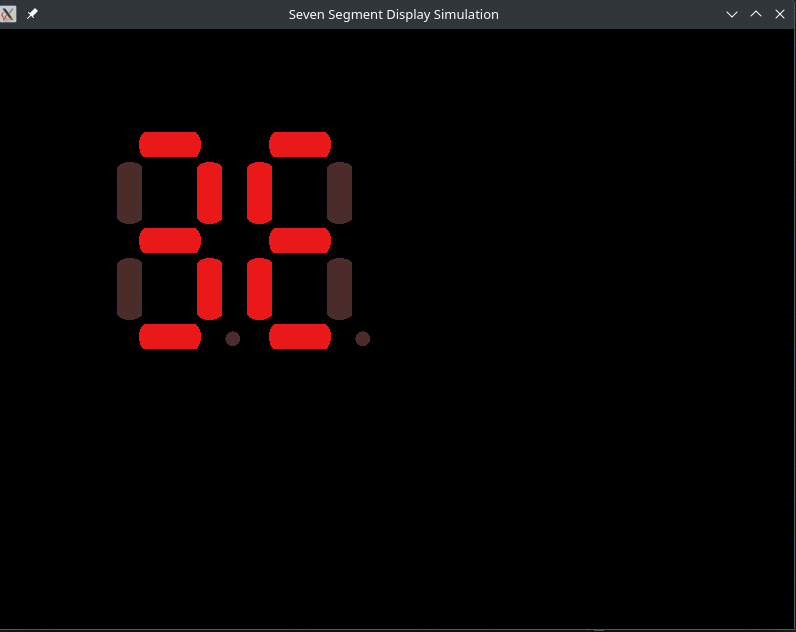

Daisy Chained Seven Segment Simulation

Building the circuit

Breadboarding out the circuit is straight forward, if not a touch tedious. You need resistors for each segment, so you end up with 16 of them plus the two displays and two shift registers.

If you follow the breadboard schematic above, you will end up with the following:

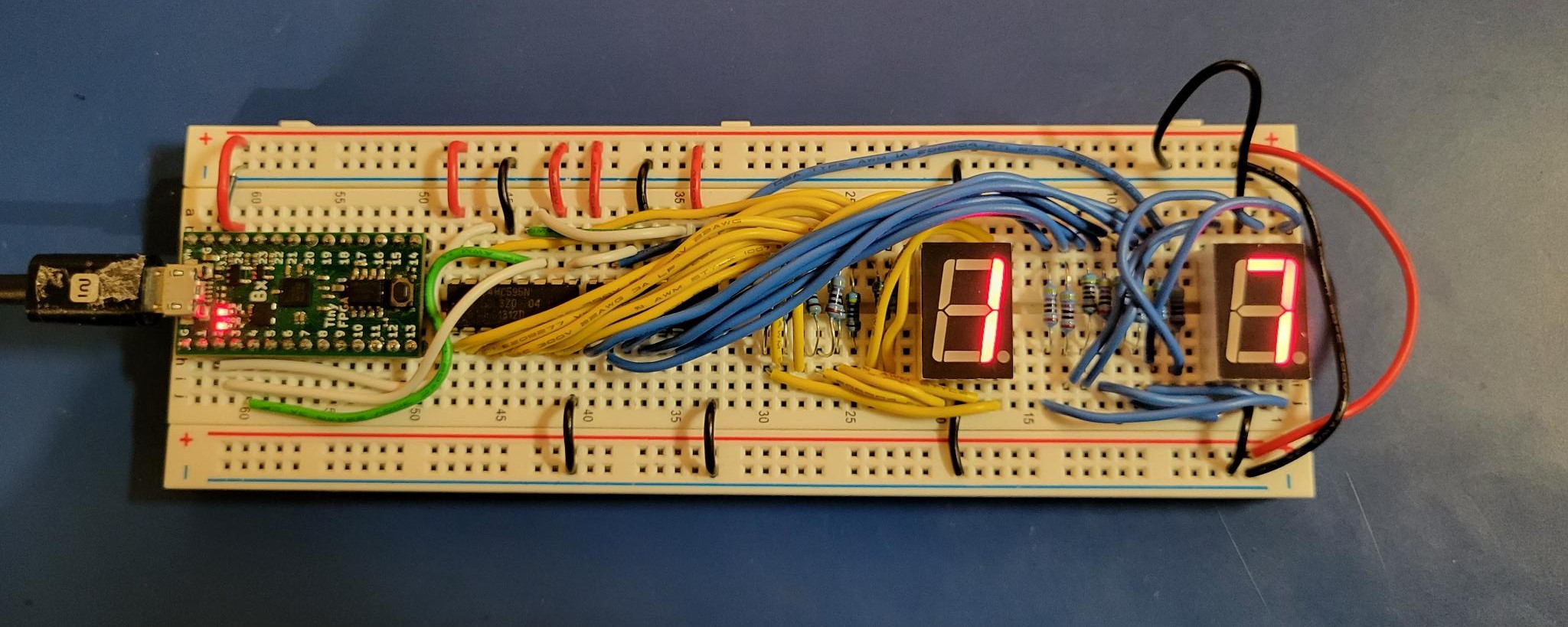

Daisy-chained Seven Segment Display on Actual Breadboard

If you deploy the circuit, you'll see the digits couting up as you would expect:

Another Way: Time Multiplexing

While we could just continue to daisy-chain multiple shift registers together with each one outputting to a display of its own, we would need one shift register per display, and each segment within a display needs its own current limiting resistor, which adds up. In some cases we may be more sensitive to part counts in our projects to complete our project. With less parts it will be cheaper to build and require less space.

If we want to have more seven segment displays but want the least number of components we can do something a bit clever and time-multiplex them. That just means we'll use one shift register for the current display value, and one shift register to round-robin enable each display in turn, one by one.

So, one shift register will show the currently enabled display's segments and the second shift register will act as an enable mask, with each bit being assigned to a different display. This allows us to drive up to eight displays with just two shift registers. Because only one display will be driven at a time, we can also get away with only eight resistors in total, rather than eight per display.

This works because the human eye can't perceive the quick on and off cycling as long as we cycle through the displays fast enough. The downside is of course that since we are switching between each display, there is less time that each display is actively on, and so will appear dimmer overall.

For the second shift register that controls which display is on, we'll use what's called "one-hot" encoding. This just means that we convert from the binary value of our counter rotating through which display should be on and create an enable mask where only one bit is on and all of the others are zero. It will end up looking like we shift a bit from the 0th position through to the nth bit position and then repeating.

In our case we will have the following encoding:

CounterOne-hot Encoded Value
00001
01010
10100

We can use that on/off signal to operate a transistor as a switch to selectively connect one display at a time. That means each display will now have a transistor in between it's common pin to accomplish this. In our case this common pin is the ground since I'm using common ground seven segment displays.

In our test circuit we'll set up 3 seven segment displays and so the first 3 bits of our control shift register will be the enable bit for each display in turn.

One-hot encoder design

Let's start with the one hot encoder design as it's pretty straight-forward. We simply need to take in a counter value, 0 to 7, and output the bit that corresponds to that value, effectively mapping the 3 bit counter to one of 8 bits on the output.

module one_hot_encoder
    (
        i_val
        , o_one_hot_val
    );

    parameter DATA_WIDTH = 3;
    localparam DATA_SIZE = 1<<DATA_WIDTH;

    input [DATA_WIDTH-1:0] i_val;
    output reg[DATA_SIZE-1:0] o_one_hot_val;

    reg [DATA_WIDTH:0] ii;
    always @(*)
    begin
        for(ii = 0; ii <= DATA_SIZE; ii++)
        begin
            if({1'b0, i_val} == ii) o_one_hot_val = 1 << ii;
        end
    end
endmodule

Notice here we're making use of the Verilog for loop construct. This is different than loops in procedural languages like C or C++, in that it is not designing a circuit that runs over clocks cycles, we do that ourselves with state machines as descibed in the first article.

Instead, a Verilog for loop is more akin to a meta-programming construct in that it instantiates N iterations of the body in the actual circuit. The above is equivalent to us hand unrolling the loop and write each of the if({1'b0, i_val} == ii) ... statements by hand replacing ii with the current bit we are checking for.

The Time-Multiplexed Code

// look in pins.pcf for all the pin names on the TinyFPGA BX board
module top (
    input CLK       // 16MHz clock
    , output LED    // User/boot LED next to power LED
    , output USBPU  // USB pull-up resistor
    , output PIN_1  // shift register Data signal
    , output PIN_2  // shift register Data clock
    , output PIN_3  // shift register latch to outputs.

    , output PIN_4  // one hot encoding output
    , output PIN_5  // one hot encoding output
    , output PIN_6  // one hot encoding output
`ifdef SIMULATION
    , output [15:0] o_seg_out // Debug output for simulator to veify shifted data is correct.
`endif
);
    // drive USB pull-up resistor to '0' to disable USB
    assign USBPU = 0;

    reg [31:0] counter;

`ifdef SIMULATION
    // When running the simulation, we will lower the number of cycles to make
    // it easier to read the waveform output.
    localparam START_SEG_1_BIT = 10;

    localparam TIME_TICK_BIT = 6;
    localparam LED_BLINK_BIT = 10;
    localparam CLOCK_BIT = 0;
`else
    // On the real board, our clock is 16MHz, so in order to see the LED pattern
    // we need to consider how many cycle ticks we should have.  In our case
    // 16*1000*1000 is one second, which is roughly when the 24th bit toggles.
    // We'll use that as our algorithm's tick delay.
    localparam START_SEG_1_BIT = 20;

    localparam TIME_TICK_BIT = 12;

    // We want the blink pattern to be 4 times per update tick, aka 2 bits less.
    localparam LED_BLINK_BIT = 22;

    localparam CLOCK_BIT = 6;
`endif

    wire [7:0] seg_out;
    wire sh_ds, sh_clk, sh_latch;

    reg [2:0] digit_counter = 0;
    wire [1:0] which_digit;
    assign which_digit = digit_counter [2:1];

    reg last_time_bit_val =0;

    /* verilator lint_off UNUSED */
    reg [11:0] debug_count;
    /* verilator lint_on UNUSED */

    // The values of the current hex digit we're displaying.
    reg [3:0] curr_digit_values;
    /* verilator lint_off UNUSED */
    reg [1:0] curr_digit_selected;
    /* verilator lint_on UNUSED */
    wire [7:0] curr_digit_selected_one_hot;

    wire [15:0] shift_reg_value;

    // We only need one seven-segment decoder, since it will be multiplexed
    // over time to show the correct digit.
    hex_to_7seg segDisplay(
            .i_val(curr_digit_values),
            .o_seg_vals(seg_out)
        );

    reg shift_reg_clock = 0;
    reg shift_toggle = 0;

    // Create a 16 bit (2^4) shift register.
    shift_reg_output #(
        .DATA_WIDTH(4)
        ) shiftReg(
            .i_clk(shift_reg_clock),
            .i_reset(1'b0),
            .i_value(shift_reg_value),
            .i_enable_toggle(shift_toggle),

            .o_data_val(sh_ds),
            .o_data_clock(sh_clk),
            .o_latch_shifted_value(sh_latch)
        );

    one_hot_encoder hot_encoder(
        .i_val({1'b0, curr_digit_selected}),
        .o_one_hot_val(curr_digit_selected_one_hot)
    );

    // Update our counter and the logic on which digit of our 3 segments
    // we want to send out through the shift register.
    always @(posedge CLK) begin
        counter <= counter + 1;
        shift_reg_clock <= counter[CLOCK_BIT];
        shift_toggle <= counter[TIME_TICK_BIT];

        if(last_time_bit_val == 0 && counter[TIME_TICK_BIT] == 1'b1) begin
            //debug_count <= counter[START_SEG_1_BIT +: 12];
            curr_digit_values <= counter[START_SEG_1_BIT+which_digit*4 +: 4];
            curr_digit_selected <= which_digit;
            digit_counter <= digit_counter + 1;
            if(digit_counter == 6) begin
                digit_counter <= 0;
            end
        end
        // else if(last_time_bit_val == 1 && counter[TIME_TICK_BIT] == 1'b0) begin
        // end

        last_time_bit_val <= counter[TIME_TICK_BIT];
    end

    // light up the LED according to the pattern
    assign LED = counter[LED_BLINK_BIT];
    assign shift_reg_value = (digit_counter[0] == 1) ? {seg_out, curr_digit_selected_one_hot} : 16'b0;
    assign PIN_1 = sh_ds;
    assign PIN_2 = sh_clk;
    assign PIN_3 = sh_latch;

    assign PIN_4 = curr_digit_selected_one_hot[0];
    assign PIN_5 = curr_digit_selected_one_hot[1];
    assign PIN_6 = curr_digit_selected_one_hot[2];

    `ifdef SIMULATION
        assign o_seg_out = shift_reg_value;
        //assign o_num = counter[TOP_SEG_2_BIT:START_SEG_1_BIT];
    `endif

endmodule

Things to note in the code:

Running the simulation, you'll see the digits counting up very fast so that we can see the third digit change in a reasonable amount of time:

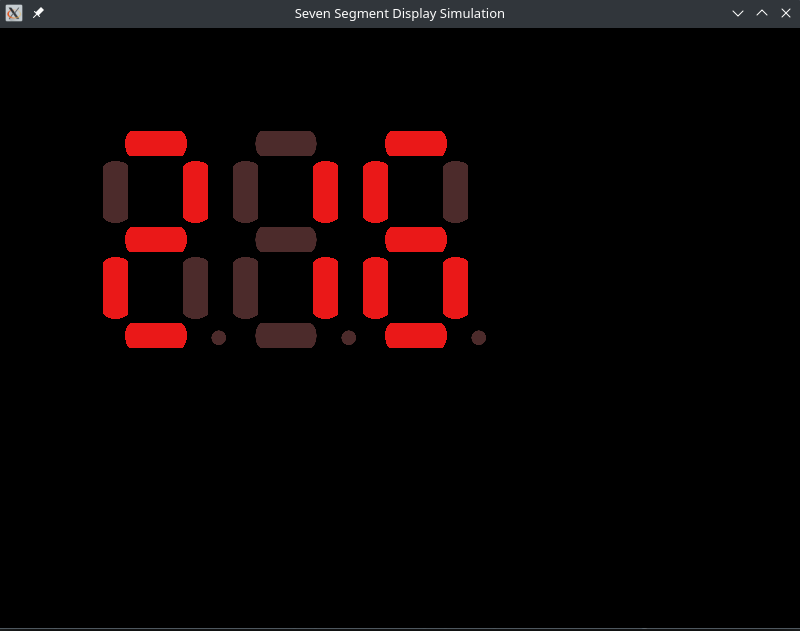

Time multiplexed Simulation

Building the circuit

Using NPN or PNP transistors as a switch.

So we have a signal from our one-hot encoder shift register to tell us whether a particular display should be enabled or not, but what does that look like on the circuit?

We can make use of a transistor as a switch. In this case I'm using Bipolar Junction transistors, so I connect my NPN ones up such that the collector is connected to the ground rail, and the emitter is connected to the ground/common pin of a seven segment display. The base is connected to the enable signal for that display, meaning that when that signal is low, the transistor won't allow current to flow, and when it is high it will. This lets us disconnect the seven segment display from the circuit by breaking its path to ground through the transistor as a switch.

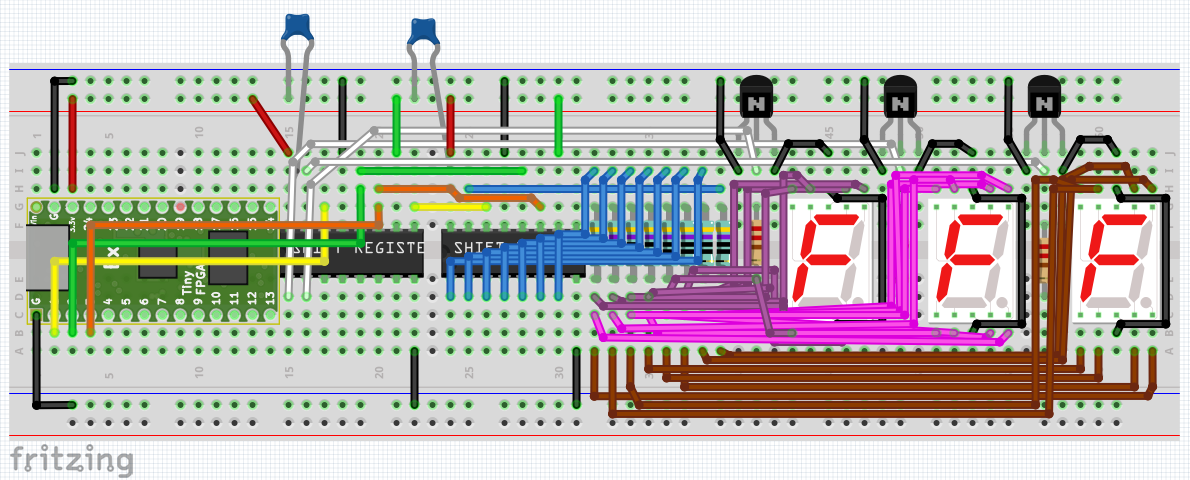

Laying out the time-multiplexed seven segment display circuit

Issues I ran into

Ghost Digit Display

Once again, the simulation for this was working perfectly, but when I deployed the initial circuit, the display rather than looking solid, were blurry and seemed like there were ghost images. I knew the logic was doing what I wanted and I could see the values counting too so I knew there was something wrong at the electrical level.

I first checked all of the connections, making sure that ground was properly connected and nothing was floating, but that was all fine. I tried switching out to different seven segment displays thinking maybe I had burned them out at some point: no luck. I tried using a MOSFET instead of a BJT and I still had the same problem.

I had already checked the timing on the shift registers from the last article, so I was within bounds on the timing constraints there and so was at a loss of what was wrong after a few hours of fiddling around and trying different things (and also triple checking all of the simulation logic).

I finally looked around the internet to see if someone else had done a similar project and found an article where the same type of multiplexing was being done but using an Arduino. Looking at the code in the article I noticed the one difference was that they had a full cycle where nothing was displayed on any of the segments in between turning each one on. Changing the one-hot encoder counter to switch off every other cycle fixed the problem completely! What was happening is that the encoder would swap the next display on, but there was still some current flowing from the old display register into the new one as it switched over to display its new value. The effect was that I got a ghost of the previous digit on the current digit's display. By giving the current digit some time to let the last digit value drop off, everything started working properly.

Other Tweaks

A couple of other tweaks I discovered helped the circuit work better, which means brighter and less flickering as we cycle through the enabled displays:

Reviving the Breadboard Circuit Three Years Later

I first built up this circuit about three years ago, and didn't get around to taking pictures for the article. When I tried to load the design again, the displays were dim and flickering. I probed the various power and ground rails to make sure the connections were good and found some flakey parts, probably some the wires being a bit short and having some build up over time that made the connections not too great. Cleaning up the wires a bit, swapping a few out and using a really fine sand paper to touch clean the connections on a few components did the trick.

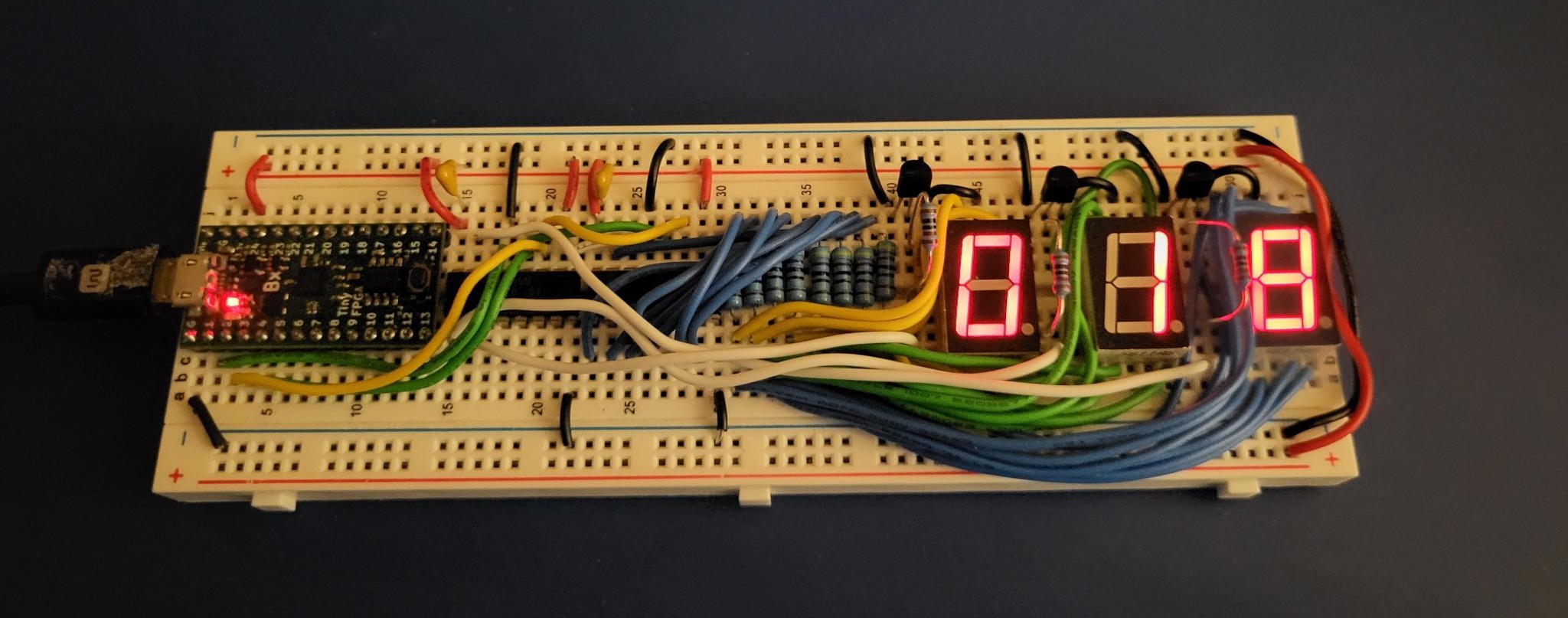

The Time-Multiplexed Breadboard Circuit

Time-Multiplexed Seven Segment Circuit

Deploying this, you should see the counter spanning across all three segments.

Next Time

The plan for next time is to explain the UART serial receiver/transmitter that I built some time ago. I would say it will be up soonish, but I know how that turns out.
